1 atmosphere gas mixing furnace
Photo: Inst. for Geosciences
1 atm gas mixing furnace

Gas Mixing Furnace

Temperature: < 1900 °K

Pressure: 1 atm

Vertical gas mixing furnace (Carbolite-Gero STF 16/180) for glass or crystal synthesis experiments under controlled oxygen fugacity (fO2 conditions)

Gas mixtures of CO, CO2 and Ar/H2 are possible or experiments can be run under atmospheric conditions.

The amount of O2 is measured with a  Zirox XS50B-600 O2-sensor.

Equipment: rapid quench sample holder, gas-tight ceramic tube, water-chilled flanges (top & bottom), and logging units for temperature and oxygen fugacity



Leader / Contact:

Dr. Melanie Sieber & Prof. Dr. Max Wilke

1 atmosphere gas mixing furnace
Photo: Inst. for Geosciences
1 atm gas mixing furnace

To top

Diamond Anvil Cell Lab

Temperature: 1500-5000 K

Pressure: < 100 GPa


Our laboratory for diamond anvil cells (DAC) and laser heating has everything needed for our own and our collaborators' high pressure and high temperature research.

In detail, there is a suite of different types of diamond anvil cells, binoculars, a ruby fluorescence system and a spark-erosion micro-drilling system. The Raman system ist next door.

Gas loading is available for Neon at the German Research Centre for Geosciences (GFZ) Potsdam, section 3.6

Our CW infrared laser heating system is portable and has been commissioned for in-situ X-ray emission spectroscopy at Petra III, DESY, Hamburg.

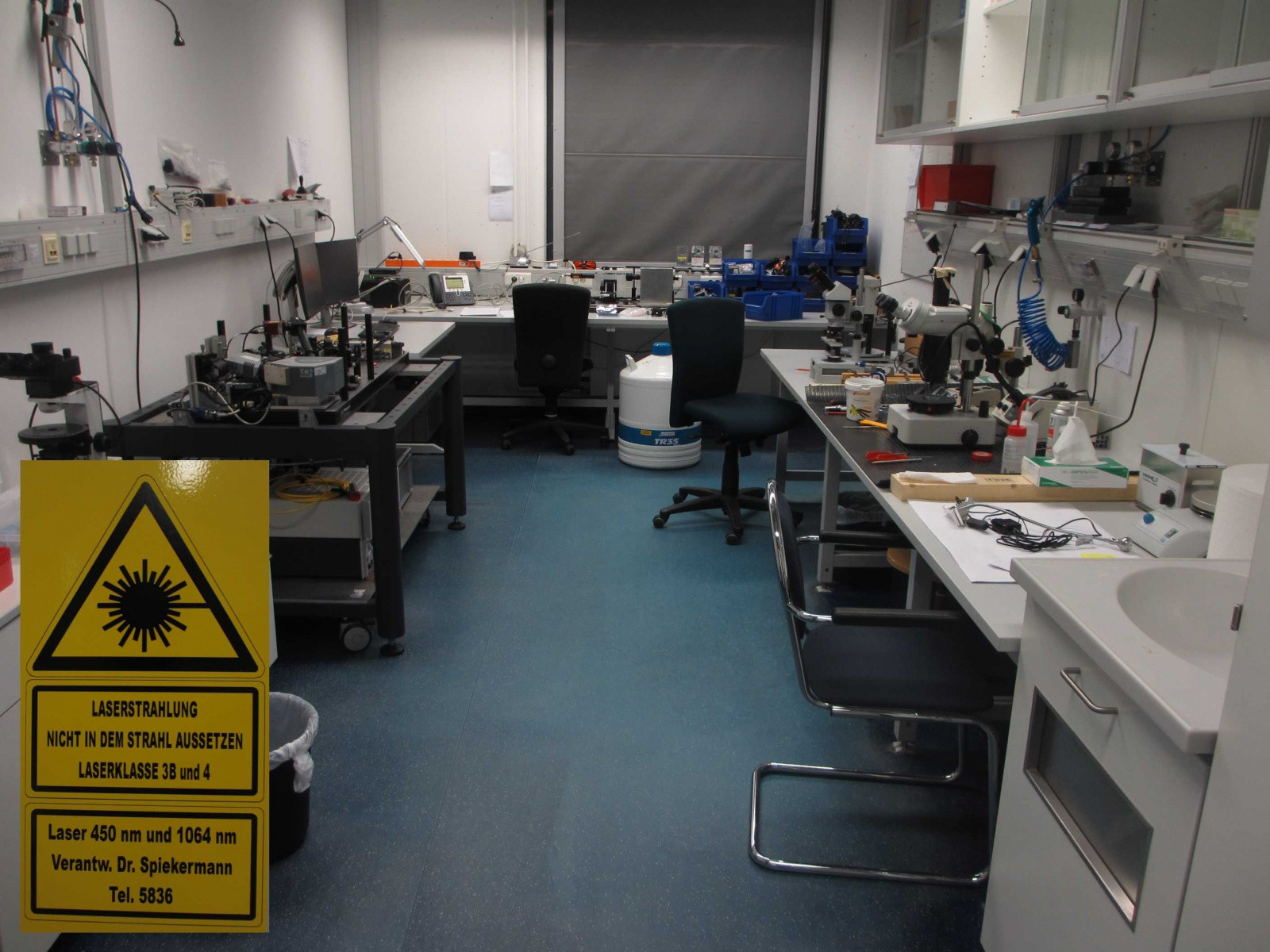

Fig.1. Laser-heated Diamond Anvil Cell Lab at the Institute of Earth & Environmental Sciences, University of Potsdam.
Fig.1. Laser-heated Diamond Anvil Cell Lab at the Institute of Earth & Environmental Sciences, University of Potsdam.
Fig. 2. (a) photo of portable laser-heated DAC table setup for synchrotron application, (b) sketch of laser heating setup, and (c) example of X-ray emission spectra measured at DESY.
Fig. 2. (a) photo of portable laser-heated DAC table setup for synchrotron application, (b) sketch of laser heating setup, and (c) example of X-ray emission spectra measured at DESY.
Internally Heated Pressure Vessel
Photo: Sarah Cichy
Internally heated pressure vessel (left) connected to 2-stage pressure intensifier (right)

Internally Heated Pressure Vessel (IHPV)

Temperatur: <1500 °K

Druck:  < 1 GPa ; Ar gas as pressure medium

Internally Heated Pressure Vessel (IHPV), Harwood type

Allows the experimental simulation of magmatic and metamorphic pressure and temperature conditions of the upper crust.

High Pressure Laboratory for Geomaterial Sciences - a Geo.X joint lab at GFZ Potsdam

max. sample size: 50 mm length, 10 mm diameter

normal- & rapid-quench sample holder



Leitung / Kontakt:

Dr. Melanie Sieber & Prof. Dr. Max Wilke

Internally Heated Pressure Vessel
Photo: Sarah Cichy
Internally heated pressure vessel (left) connected to 2-stage pressure intensifier (right)
